rtrvr.ai agents aren't limited to browsing. They can call external APIs, query databases, and run custom logic using the Model Context Protocol (MCP) or secure JavaScript tools. Tools are a shared primitive — create them once, use them across the extension, cloud, and API.

AI Subroutines

AI Subroutines are reusable tools generated by rtrvr.ai from natural-language intent, recordings, API docs, or the current webpage context. They are ideal when you want a stable capability such as “send a LinkedIn DM”, “create a HubSpot contact”, or “submit this internal form” without rebuilding the workflow each time.

Generate a subroutine from a natural-language request
Generate a subroutine from a recording to capture a real interaction flow
Point the generator at API docs or an authenticated webpage and let it infer the tool shape
Save the resulting tool once and reuse it from chats, workflows, schedules, and API-triggered runs

Direct Tool Calls

When you know exactly which tool to use, bypass the AI planner with the @toolName syntax. This is highly efficient for repetitive tasks and gives you direct control.

text

@act(action="click submit")              → Direct browser action
@extractToSheets(prompt="get emails")     → Fast extraction across open tabs
@hubspot_lookup(email="user@example.com") → Call a custom/MCP tool directly

MCP Servers

Connect to any Model Context Protocol server by pasting its URL. Once connected, all MCP tools become available in your chat with @toolname syntax. rtrvr.ai supports SSE (Server-Sent Events), HTTP Streamable, and OAuth-protected servers.

Open the Tools section in extension settings
Paste the MCP server URL (e.g., your company's internal MCP, or a public one)
Authenticate if required (OAuth flow handled in-browser)
All server tools appear instantly — use them with @toolname in chat

OAuth-protected servers require periodic reauthentication. You can manage sessions in the extension settings or via the cloud dashboard.

AI Tool Generator

Don't have an MCP server? The Tool Generator sub-agent can create AI Subroutines automatically. Just describe what you need in plain English — or better yet, point the agent at an API documentation page, an authenticated web app, or a recording and let it build the tool for you.

text

"Find my HubSpot API keys and create a tool to load contacts"

"Use this onscreen API docs to create a tool that searches our internal database"

"Create a tool that calls the OpenWeatherMap API with a city name and returns the forecast"

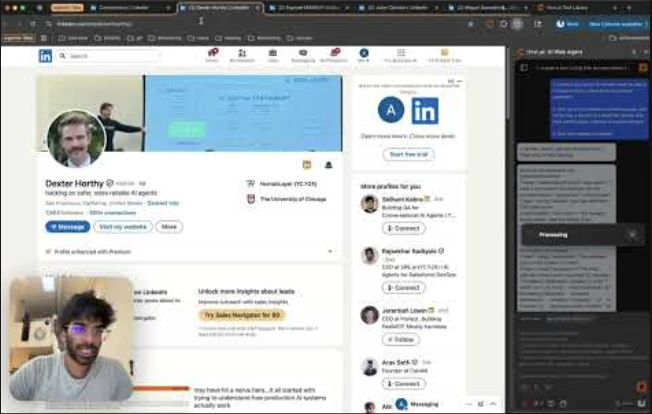

"Turn this LinkedIn recording into an AI Subroutine that opens Message, writes a DM, and sends it"

Tools created in the Chrome Extension can be saved and reused in the Cloud environment. They travel with shared workflows.

Create a Subroutine From a Recording

Recordings are one of the fastest ways to create robust AI Subroutines. rtrvr.ai analyzes the DOM interactions and nearby network traffic, then chooses the best replay strategy: semantic DOM automation when the UI flow is the stable source of truth, or network-backed execution when the captured request is clearly first-party and reusable.

Record the task once in the extension
Open the recording and choose to generate a tool/subroutine
The generator uses the recording as grounding context for buttons, composers, waits, and API shape
Save the generated tool and call it directly with @toolName or from workflows

For volatile sites, DOM-grounded subroutines are usually safer than replaying internal GraphQL or hashed API endpoints. Recordings help the generator decide which path is actually stable.

Custom JavaScript Tools

Write your own tools in JavaScript or let the AI build them. Subroutines can run as sandboxed JavaScript tools or as webpage tools that execute in the authenticated browser context. You can store API keys as default parameters — they remain local to your machine and are never sent to rtrvr.ai servers.

Two Execution Styles

Style	Best For	Runtime Implications
Sandbox tool	Pure computation, public APIs, data transforms, authenticated APIs with local API keys, fetched HTML parsed with `DOMParser`	Runs in an isolated extension JavaScript runtime. It can use parameters, defaults, `fetch`, and `rtrvr.*` agent helpers, but it does not read the live page's `document`, `window`, `localStorage`, or application JavaScript state.
Webpage tool / AI Subroutine	Logged-in websites, DOM actions, page cookies, in-page fetch, rich editors, CSRF-protected requests	Opens or reuses a browser tab, waits for load plus any settle delay, injects the runtime, then runs in the authenticated page context with page `window`, `document`, cookies, localStorage, in-page fetch/XHR, and webpage `rtrvr` helpers.

Default to sandbox unless the tool needs the live page. Choose webpage when the result depends on browser session state, client-side rendering, DOM interaction, page cookies, localStorage, CSRF tokens, or the app's own JavaScript runtime.

Webpage URLs and Parameters

Webpage tools need a page to run inside. At call time, URL selection uses this priority: urls parameter first, then url, then the saved defaultUrls. The runtime deduplicates the chosen URLs, opens each page, waits for load, applies pageExecution.settleMs, and injects url, urls, and tabId into your code.

defaultUrls can contain static URLs, one URL per entry.
Use simple ${paramName} placeholders when the destination depends on a parameter.
Only simple placeholders are supported. Do not use expressions like ${handle.replace('@', '')}, ternaries, or nested paths.
If a placeholder is unresolved, execution fails during URL resolution before opening a tab.
If the parameter is a full URL, make it the whole template: ${profileUrl}. If it is an ID or handle, build the URL around it: https://x.com/${handle}.

javascript

// Static page target
defaultUrls: ["https://news.ycombinator.com/news"]

// Identifier parameter: the runtime opens https://x.com/rtrvr_ai
parameters: {
  handle: { type: "string", description: "X handle without normalization expressions" },
}
defaultUrls: ["https://x.com/${handle}"]

// Full URL parameter: use the parameter as the whole template
parameters: {
  profileUrl: { type: "string", description: "Complete profile URL" },
}
defaultUrls: ["${profileUrl}"]

pageExecution.settleMs controls the extra wait after the tab reports loaded. Leave it blank to use the runtime default of 1500 ms, set it to 0 to skip the extra wait, or increase it when a single-page app needs more time to render client-side content.

javascript

executionMode: "webpage",
defaultUrls: ["https://app.example.com/orders/${orderId}"],
pageExecution: {
  settleMs: 2500,
},
code: `
const title = document.querySelector("h1")?.textContent?.trim();
return { url, urls, tabId, title };
`

How Parameters Work

When you define parameters for a custom function, they become available as JavaScript variables in your code. The system automatically converts each parameter into a const declaration before running your code.

javascript

// Parameters defined: firstName (string), lastName (string), apiKey (string, default)
// Your code — parameters are pre-declared as const variables:

const res = await fetch(`https://api.example.com/users?name=${firstName}+${lastName}`, {
  headers: { "Authorization": `Bearer ${apiKey}` }
});
const data = await res.json();
return data.results;

Define parameters with names, types, and optional defaults
Reference parameters directly as variables (firstName, not params.firstName)
Parameters are injected as const declarations before your code runs
Return any JSON-serializable value — async/await is fully supported
console.log() output is captured and shown in results for debugging

API keys stored as default parameters = local only, never sent to servers. This is the recommended pattern for authenticated tool calls.

Code Examples

javascript

// Simple greeting
return `Hello ${firstName} ${lastName}!`;

// Math
return price * quantity * (1 + taxRate);

// API call
const r = await fetch(url);
return await r.json();

// Transform
return items.map(i => i.name).join(", ");

Parameter names must be valid JavaScript identifiers (letters, numbers, underscores — no spaces).

Webpage Helper Functions (`rtrvr`)

Webpage tools and AI Subroutines can use the built-in rtrvr helper namespace to interact with the live page without dropping down to brittle manual DOM code. These helpers are especially useful for authenticated flows, contenteditable editors, CSRF-protected requests, and waiting for UI state transitions.

Helper	Use
`rtrvr.find({ role, name, text, placeholder })`	Find a semantic page target and return an opaque handle
`rtrvr.click(handleOrTarget)`	Click a previously found handle or a semantic target
`rtrvr.type(handleOrTarget, value, { clear, submit })`	Type into inputs or rich contenteditable editors
`rtrvr.waitFor(targetOrFn, { timeoutMs })`	Wait for the next UI state, modal, composer, or control
`rtrvr.waitForUrl(match, { timeoutMs })`	Wait for navigation or route changes
`rtrvr.request(url, init)`	Make authenticated in-page requests using the page context
`rtrvr.requestJson(url, init)`	Same as request, but parses JSON when available
`rtrvr.getCsrfToken()`	Read the current page CSRF token for sites that require it
`rtrvr.getCookie(name)`	Read a cookie value from the current page

javascript

// Example webpage tool body
const button = await rtrvr.find({
  role: "button",
  name: /Connect/i,
});

if (!button) {
  return { success: false, error: "Connect button not found." };
}

await rtrvr.click(button);

const csrfToken = rtrvr.getCsrfToken();
return await rtrvr.requestJson("/voyager/api/example", {
  method: "POST",
  headers: {
    "content-type": "application/json",
    "x-csrf-token": csrfToken,
  },
  body: JSON.stringify({ ok: true }),
});

Agent Capabilities (`rtrvr.*` built-ins)

Both sandbox and webpage tools can call the agent's internal capabilities through the rtrvr namespace. These helpers share names and parameter shapes with the rtrvr MCP (for example get_page_data, take_page_action, knowledge_base_query), so code written against the MCP translates directly inline. They reuse the user's existing Google auth and credit allowance — don't hand-roll OAuth or tree parsing yourself.

Complete built-in surface: getPageTree, pageAction, listTabs, createSheet, appendRow, appendColumn, readSheet, createKB, listKB, queryKB, addToKB, createTool, customToolGenerator, listRecordings, startRecording, finishRecording, act, extract, and processText. Tool-composition helpers are documented below: callTool, listTools, and invokeBuiltin.

Page data & actions

Helper	Returns / Effect
`await rtrvr.getPageTree({ tabId?, onlyTextContent?, disableAutoScroll? })`	`{ tabId, url, title, tree, elementLinkRecord, accTreeId }` — same shape as MCP `get_page_data`
`await rtrvr.pageAction({ tool, args, tabId? })`	Run a single system tool on a tab; mirrors MCP `take_page_action`
`await rtrvr.listTabs()`	List browser tabs as `{ tabId, url, title, active, windowId }[]`

Supported pageAction tools include: click_element, type_into_element, type_and_enter, select_dropdown_value, clear_element, focus_element, hover_element, right_click_element, double_click_element, press_key, scroll_page, scroll_to_element, drag_element, drag_and_drop, adjust_slider, goto_url, go_back, go_forward, refresh_page, open_new_tab, switch_tab, close_tab, google_search, describe_images, discover_and_extract_network_data, copy_text, paste_text, upload_file, wait_action, wait_for_element, solve_captcha. See Browser Tools for argument schemas.

Google Sheets

Helper	Returns / Effect
`await rtrvr.createSheet({ title, tabTitle?, headers? })`	Creates a spreadsheet in the user's Drive. Returns `{ sheetId, sheetTab, sheetUrl }`.
`await rtrvr.appendRow({ sheetId, sheetTab?, values \| rows })`	Append one row (`values`) or many rows (`rows`). Returns `{ appended, updatedRange, updatedRows, updatedCells }`.
`await rtrvr.appendColumn({ sheetId, sheetTab?, values, header? })`	Append a new rightmost column. Optional `header` is written before `values`. Returns `{ appended, column, updatedRange, updatedRows, updatedCells }`.
`await rtrvr.readSheet({ sheetId, range? })`	Read an A1 range. Returns `{ range, rows }`.

Knowledge Base (RAG)

Helper	Returns / Effect
`await rtrvr.createKB({ displayName })`	Create an empty KB store. Returns `{ storeId, storeName, displayName }`. Mirrors MCP `knowledge_base_create_store`.
`await rtrvr.listKB()`	List stores as `{ storeId, displayName, documentCount, updatedAt }[]`. Mirrors MCP `knowledge_base_list_stores`.
`await rtrvr.queryKB({ storeId, query })`	RAG query. Returns `{ response, citations }`. Mirrors MCP `knowledge_base_query`.
`await rtrvr.addToKB({ storeId, tabIds? })`	Index tabs (or the active tab) into a KB store. Mirrors MCP `knowledge_base_batch_index`.

Recordings & tool creation

Use recordings when the agent needs an example of the real interaction path. recordingId is the convenient form; recordingContext is the lower-level backend field. Passing either one to act, extract, or createTool grounds that subroutine in the captured DOM and network context.

Helper	Returns / Effect
`await rtrvr.listRecordings()`	List recording metadata as `{ recordingId, recordingName, captureTimestamp }[]`; full recording payloads are not returned.
`await rtrvr.startRecording({ name, tabId? })`	Start recording DOM interactions and network calls. Returns `{ recordingId, recordingName, state }`.
`await rtrvr.finishRecording({ timeoutMs? })`	Stop the active recording and wait for upload when possible. Returns `{ recordingId, recordingName, uploadStatus, metadata?, warnings? }`.
`await rtrvr.createTool({ userInput, tabIds?, recordingId?, recordingContext?, generationMode?, editContext? })`	Create a reusable custom tool with the custom tool generator. Defaults `generationMode` to `"save"`; generated tools should not call `createTool` recursively.
`await rtrvr.customToolGenerator({ userInput, tabIds?, recordingId?, recordingContext?, generationMode?, editContext? })`	Alias for `createTool`, kept for explicit access to the generator. Prefer `createTool` for new tools; do not generate tools that call either helper recursively.

Agent sub-routines

When deterministic helpers aren't enough, you can invoke the same planner-backed sub-agents the chat experience uses. These helpers mirror the rtrvr MCP act_on_tab, extract_from_tab, and processText endpoints.

Helper	Returns / Effect
`await rtrvr.act({ userInput, tabIds?, schema?, recordingId?, recordingContext? })`	Run the Act agent across one or more tabs (navigation, clicks, form fills), optionally grounded in a recording. Returns `{ data, warnings, creditsUsed }`. Mirrors MCP `act_on_tab`.
`await rtrvr.extract({ userInput, tabIds?, schema?, recordingId?, recordingContext? })`	Structured extraction across tabs, optionally grounded in a recording. Returns `{ data, jsonData, warnings, creditsUsed }`. Mirrors MCP `extract_from_tab`.
`await rtrvr.processText({ textInputs, taskInstruction, schema? })`	Summarize or transform text inputs via the LLM. Returns `{ data?, text?, warnings, creditsUsed }`. Especially useful for parsing structured JSON out of unstructured strings — pass any text blob plus a `schema` and the helper returns typed `data` matching it.

rtrvr.processText is the right reach whenever you have raw text (an email, HTML excerpt, model response, chat transcript) and need fielded JSON. It runs no browser tab and no DOM extraction — just LLM-backed string-to-schema parsing — so it's faster and cheaper than rtrvr.extract for text-only inputs.

Agent sub-routine helpers burn credits the same way a chat invocation does. Prefer rtrvr.pageAction / rtrvr.getPageTree / rtrvr.callTool when the task is deterministic and doesn't need planning.

javascript

// Compose planner-backed sub-agents with deterministic helpers.
const { data: leads } = await rtrvr.extract({
  userInput: "Pull each visible lead's name, email, and company",
  schema: {
    type: "array",
    items: {
      type: "object",
      properties: {
        name: { type: "string" },
        email: { type: "string" },
        company: { type: "string" },
      },
    },
  },
});

// processText shines for string -> JSON: pass raw text + a schema, get typed data.
const rawEmailBody = await rtrvr.callTool("fetchInboundEmail", { id: emailId });
const { data: parsed } = await rtrvr.processText({
  textInputs: [rawEmailBody.body],
  taskInstruction: "Extract the sender intent, requested meeting time, and any cited deal names.",
  schema: {
    type: "object",
    properties: {
      intent: { type: "string" },
      requestedMeetingTime: { type: "string" },
      dealNames: { type: "array", items: { type: "string" } },
    },
    required: ["intent"],
  },
});

const { sheetId } = await rtrvr.createSheet({
  title: "Lead outreach",
  headers: ["name", "email", "company", "intent", "deals"],
});

for (const lead of leads) {
  await rtrvr.appendRow({
    sheetId,
    values: [lead.name, lead.email, lead.company, parsed.intent, (parsed.dealNames || []).join(", ")],
  });
}

return { sheetId, count: leads.length };

Tool composition

A subroutine can call **any other tool the user has** — that includes user-authored custom tools and **every MCP server tool the user has connected**. The execution environment looks the tool up by name, dispatches MCP calls through the connected MCP client, and dispatches user tools through the same sandbox or webpage runtime that powers them in chat. There is no separate plumbing to wire up — connect a HubSpot MCP server once and await rtrvr.callTool('hubspot.createContact', { email }) works inside any subroutine.

When the tool generator builds a subroutine, the prompt is given the user's full tool list (custom + MCP, with parameter schemas and [MCP] / [custom] badges) so the LLM can wire calls correctly without you re-pasting the spec. Use await rtrvr.listTools() at runtime if you ever need to introspect what's available.

Helper	Returns / Effect
`await rtrvr.callTool(name, params)`	Call another custom tool or MCP server tool by name. Resolution: the runtime looks the tool up by name, validates `params` against its schema, and dispatches — MCP tools through the connected MCP client (e.g. HubSpot, Linear), user tools through the same sandbox/webpage runtime they use in chat. Returns the callee's raw result.
`await rtrvr.listTools()`	List every tool the current user has available to `callTool` — both custom tools and MCP server tools — each with `{ name, description, parameters, source: 'custom' \| 'mcp' \| 'predefined' }`.
`await rtrvr.invokeBuiltin(helper, args)`	Escape-hatch that invokes any builtin by name — equivalent to `rtrvr.<helper>(args)`.

Recursive tool calls are allowed up to a safety depth (5) and guarded against cycles. Prefer composing existing tools over re-implementing logic — especially for repetitive auth flows, MCP-backed CRM/ticketing actions, and sheet writes.

javascript

// MCP + custom-tool composition in a single subroutine.
// Assumes the user has connected the HubSpot MCP server and authored a custom
// tool called `fetchInboundEmail`. Both surface as `rtrvr.callTool(name, params)`
// without any extra glue.

const email = await rtrvr.callTool("fetchInboundEmail", { id: emailId });

const { data: parsed } = await rtrvr.processText({
  textInputs: [email.body],
  taskInstruction: "Extract sender intent and any cited deal names.",
  schema: {
    type: "object",
    properties: {
      intent: { type: "string" },
      dealNames: { type: "array", items: { type: "string" } },
    },
    required: ["intent"],
  },
});

// Dispatched to the HubSpot MCP server by name — the runtime resolves it.
const contact = await rtrvr.callTool("hubspot.createContact", {
  email: email.from,
  firstName: email.fromName?.split(" ")[0],
  lifecycleStage: parsed.intent === "demo_request" ? "lead" : "subscriber",
});

return { contactId: contact.id, intent: parsed.intent, deals: parsed.dealNames };

javascript

// Capture the active tab's tree, write a row to a new sheet, and index in KB.
const { tree, title, url } = await rtrvr.getPageTree({});

const { sheetId, sheetTab } = await rtrvr.createSheet({
  title: "Page Snapshots",
  headers: ["url", "title", "capturedAt"],
});

await rtrvr.appendRow({
  sheetId,
  sheetTab,
  values: [url, title, new Date().toISOString()],
});

const stores = await rtrvr.listKB();
const store = stores[0] || await rtrvr.createKB({ displayName: "Page Snapshots" });
await rtrvr.addToKB({ storeId: store.storeId });

return { sheetId, treeLength: tree.length };

javascript

// Drive the page via named system tools — no DOM code needed.
await rtrvr.pageAction({
  tool: "goto_url",
  args: { url: "https://example.com/orders" },
});

await rtrvr.pageAction({
  tool: "wait_for_element",
  args: { text: "Order list" },
});

const { tree, elementLinkRecord } = await rtrvr.getPageTree({});
// Pick a link in the tree and follow it by element_id
await rtrvr.pageAction({
  tool: "click_element",
  args: { element_id: Object.keys(elementLinkRecord)[0] },
});

return { followed: true };

javascript

// Ask a knowledge base a question and fan the answer into a sheet.
const [store] = await rtrvr.listKB();
if (!store) return { error: "No knowledge base stores yet" };

const { response, citations } = await rtrvr.queryKB({
  storeId: store.storeId,
  query: "Summarize the latest onboarding changes in one paragraph",
});

const { sheetId } = await rtrvr.createSheet({
  title: "KB digest",
  headers: ["question", "answer", "citationCount"],
});

await rtrvr.appendRow({
  sheetId,
  values: ["Latest onboarding changes", response, (citations || []).length],
});

return { sheetId, answer: response };

Choosing DOM vs Network Tools

The best AI Subroutines pick the right execution strategy for the site. In general: use DOM actions when the UI flow is the stable contract, and use network-backed execution when the request itself is the stable contract.

Prefer DOM Actions When...	Prefer Network Interaction When...
The site uses volatile internal APIs, rotating GraphQL IDs, or framework-specific hidden identifiers	You have a clear first-party endpoint with a stable request/response shape
You need to click, type, open menus, wait for dialogs, or work inside rich editors	The action is fundamentally an API call and does not depend on visible UI state
The only evidence you have is a recording of buttons, composers, and page transitions	You need structured JSON back and the site’s authenticated page context can safely make the request

For DOM tools, prefer semantic targets such as role, accessible name, placeholder, and visible text
Use staged waits after each meaningful action: open dialog → wait for composer → type → wait for send button
Avoid brittle CSS selectors and volatile class names in generated tools
For network tools, prefer rtrvr.request() / rtrvr.requestJson() over copying full captured browser headers
Never hardcode cookies, bearer tokens, CSRF tokens, or volatile query/operation IDs from a recording

A good rule of thumb: if a human would describe the task as “click this, wait for that, then type here,” generate a DOM subroutine. If they would describe it as “send this authenticated request and parse the JSON,” generate a network-backed tool.

Sheets Tool Mapping

In Sheets Workflows, the agent can map tool calls to run for every row — intelligently pulling arguments from specific columns. Just include instructions in your prompt:

text

"For each row, use the loadContact tool to upload the email in Column A and name in Column B to HubSpot"

Column A (Email)	Column B (Name)	Column C (Result)
user@example.com	Jane Doe	✅ Contact created (ID: 12345)
admin@test.org	John Smith	✅ Contact created (ID: 12346)

Platform Availability

Capability	Extension	Cloud	API
@toolname direct calls	✅	—	—
MCP server connections	✅	✅	✅
AI Tool Generator	✅	✅	—
Custom JavaScript tools	✅	✅	—
Sheets tool mapping	✅	✅	✅
Tools in replayed workflows	✅	✅	✅

AI Subroutines

Generate a subroutine from a natural-language request
Generate a subroutine from a recording to capture a real interaction flow
Point the generator at API docs or an authenticated webpage and let it infer the tool shape
Save the resulting tool once and reuse it from chats, workflows, schedules, and API-triggered runs

Direct Tool Calls

When you know exactly which tool to use, bypass the AI planner with the @toolName syntax. This is highly efficient for repetitive tasks and gives you direct control.

text

@act(action="click submit")              → Direct browser action
@extractToSheets(prompt="get emails")     → Fast extraction across open tabs
@hubspot_lookup(email="user@example.com") → Call a custom/MCP tool directly

MCP Servers

Open the Tools section in extension settings
Paste the MCP server URL (e.g., your company's internal MCP, or a public one)
Authenticate if required (OAuth flow handled in-browser)
All server tools appear instantly — use them with @toolname in chat

OAuth-protected servers require periodic reauthentication. You can manage sessions in the extension settings or via the cloud dashboard.

AI Tool Generator

text

"Find my HubSpot API keys and create a tool to load contacts"

"Use this onscreen API docs to create a tool that searches our internal database"

"Create a tool that calls the OpenWeatherMap API with a city name and returns the forecast"

"Turn this LinkedIn recording into an AI Subroutine that opens Message, writes a DM, and sends it"

Tools created in the Chrome Extension can be saved and reused in the Cloud environment. They travel with shared workflows.

Create a Subroutine From a Recording

Record the task once in the extension
Open the recording and choose to generate a tool/subroutine
The generator uses the recording as grounding context for buttons, composers, waits, and API shape
Save the generated tool and call it directly with @toolName or from workflows

For volatile sites, DOM-grounded subroutines are usually safer than replaying internal GraphQL or hashed API endpoints. Recordings help the generator decide which path is actually stable.

Custom JavaScript Tools

Two Execution Styles

Style	Best For	Runtime Implications
Sandbox tool	Pure computation, public APIs, data transforms, authenticated APIs with local API keys, fetched HTML parsed with `DOMParser`	Runs in an isolated extension JavaScript runtime. It can use parameters, defaults, `fetch`, and `rtrvr.*` agent helpers, but it does not read the live page's `document`, `window`, `localStorage`, or application JavaScript state.
Webpage tool / AI Subroutine	Logged-in websites, DOM actions, page cookies, in-page fetch, rich editors, CSRF-protected requests	Opens or reuses a browser tab, waits for load plus any settle delay, injects the runtime, then runs in the authenticated page context with page `window`, `document`, cookies, localStorage, in-page fetch/XHR, and webpage `rtrvr` helpers.

Webpage URLs and Parameters

defaultUrls can contain static URLs, one URL per entry.
Use simple ${paramName} placeholders when the destination depends on a parameter.
Only simple placeholders are supported. Do not use expressions like ${handle.replace('@', '')}, ternaries, or nested paths.
If a placeholder is unresolved, execution fails during URL resolution before opening a tab.
If the parameter is a full URL, make it the whole template: ${profileUrl}. If it is an ID or handle, build the URL around it: https://x.com/${handle}.

javascript

// Static page target
defaultUrls: ["https://news.ycombinator.com/news"]

// Identifier parameter: the runtime opens https://x.com/rtrvr_ai
parameters: {
  handle: { type: "string", description: "X handle without normalization expressions" },
}
defaultUrls: ["https://x.com/${handle}"]

// Full URL parameter: use the parameter as the whole template
parameters: {
  profileUrl: { type: "string", description: "Complete profile URL" },
}
defaultUrls: ["${profileUrl}"]

javascript

executionMode: "webpage",
defaultUrls: ["https://app.example.com/orders/${orderId}"],
pageExecution: {
  settleMs: 2500,
},
code: `
const title = document.querySelector("h1")?.textContent?.trim();
return { url, urls, tabId, title };
`

How Parameters Work

javascript

// Parameters defined: firstName (string), lastName (string), apiKey (string, default)
// Your code — parameters are pre-declared as const variables:

const res = await fetch(`https://api.example.com/users?name=${firstName}+${lastName}`, {
  headers: { "Authorization": `Bearer ${apiKey}` }
});
const data = await res.json();
return data.results;

Define parameters with names, types, and optional defaults
Reference parameters directly as variables (firstName, not params.firstName)
Parameters are injected as const declarations before your code runs
Return any JSON-serializable value — async/await is fully supported
console.log() output is captured and shown in results for debugging

API keys stored as default parameters = local only, never sent to servers. This is the recommended pattern for authenticated tool calls.

Code Examples

javascript

// Simple greeting
return `Hello ${firstName} ${lastName}!`;

// Math
return price * quantity * (1 + taxRate);

// API call
const r = await fetch(url);
return await r.json();

// Transform
return items.map(i => i.name).join(", ");

Parameter names must be valid JavaScript identifiers (letters, numbers, underscores — no spaces).

Webpage Helper Functions (`rtrvr`)

Helper	Use
`rtrvr.find({ role, name, text, placeholder })`	Find a semantic page target and return an opaque handle
`rtrvr.click(handleOrTarget)`	Click a previously found handle or a semantic target
`rtrvr.type(handleOrTarget, value, { clear, submit })`	Type into inputs or rich contenteditable editors
`rtrvr.waitFor(targetOrFn, { timeoutMs })`	Wait for the next UI state, modal, composer, or control
`rtrvr.waitForUrl(match, { timeoutMs })`	Wait for navigation or route changes
`rtrvr.request(url, init)`	Make authenticated in-page requests using the page context
`rtrvr.requestJson(url, init)`	Same as request, but parses JSON when available
`rtrvr.getCsrfToken()`	Read the current page CSRF token for sites that require it
`rtrvr.getCookie(name)`	Read a cookie value from the current page

javascript

// Example webpage tool body
const button = await rtrvr.find({
  role: "button",
  name: /Connect/i,
});

if (!button) {
  return { success: false, error: "Connect button not found." };
}

await rtrvr.click(button);

const csrfToken = rtrvr.getCsrfToken();
return await rtrvr.requestJson("/voyager/api/example", {
  method: "POST",
  headers: {
    "content-type": "application/json",
    "x-csrf-token": csrfToken,
  },
  body: JSON.stringify({ ok: true }),
});

Agent Capabilities (`rtrvr.*` built-ins)

Page data & actions

Helper	Returns / Effect
`await rtrvr.getPageTree({ tabId?, onlyTextContent?, disableAutoScroll? })`	`{ tabId, url, title, tree, elementLinkRecord, accTreeId }` — same shape as MCP `get_page_data`
`await rtrvr.pageAction({ tool, args, tabId? })`	Run a single system tool on a tab; mirrors MCP `take_page_action`
`await rtrvr.listTabs()`	List browser tabs as `{ tabId, url, title, active, windowId }[]`

Google Sheets

Helper	Returns / Effect
`await rtrvr.createSheet({ title, tabTitle?, headers? })`	Creates a spreadsheet in the user's Drive. Returns `{ sheetId, sheetTab, sheetUrl }`.
`await rtrvr.appendRow({ sheetId, sheetTab?, values \| rows })`	Append one row (`values`) or many rows (`rows`). Returns `{ appended, updatedRange, updatedRows, updatedCells }`.
`await rtrvr.appendColumn({ sheetId, sheetTab?, values, header? })`	Append a new rightmost column. Optional `header` is written before `values`. Returns `{ appended, column, updatedRange, updatedRows, updatedCells }`.
`await rtrvr.readSheet({ sheetId, range? })`	Read an A1 range. Returns `{ range, rows }`.

Knowledge Base (RAG)

Helper	Returns / Effect
`await rtrvr.createKB({ displayName })`	Create an empty KB store. Returns `{ storeId, storeName, displayName }`. Mirrors MCP `knowledge_base_create_store`.
`await rtrvr.listKB()`	List stores as `{ storeId, displayName, documentCount, updatedAt }[]`. Mirrors MCP `knowledge_base_list_stores`.
`await rtrvr.queryKB({ storeId, query })`	RAG query. Returns `{ response, citations }`. Mirrors MCP `knowledge_base_query`.
`await rtrvr.addToKB({ storeId, tabIds? })`	Index tabs (or the active tab) into a KB store. Mirrors MCP `knowledge_base_batch_index`.

Recordings & tool creation

Helper	Returns / Effect
`await rtrvr.listRecordings()`	List recording metadata as `{ recordingId, recordingName, captureTimestamp }[]`; full recording payloads are not returned.
`await rtrvr.startRecording({ name, tabId? })`	Start recording DOM interactions and network calls. Returns `{ recordingId, recordingName, state }`.
`await rtrvr.finishRecording({ timeoutMs? })`	Stop the active recording and wait for upload when possible. Returns `{ recordingId, recordingName, uploadStatus, metadata?, warnings? }`.
`await rtrvr.createTool({ userInput, tabIds?, recordingId?, recordingContext?, generationMode?, editContext? })`	Create a reusable custom tool with the custom tool generator. Defaults `generationMode` to `"save"`; generated tools should not call `createTool` recursively.
`await rtrvr.customToolGenerator({ userInput, tabIds?, recordingId?, recordingContext?, generationMode?, editContext? })`	Alias for `createTool`, kept for explicit access to the generator. Prefer `createTool` for new tools; do not generate tools that call either helper recursively.

Agent sub-routines

Helper	Returns / Effect
`await rtrvr.act({ userInput, tabIds?, schema?, recordingId?, recordingContext? })`	Run the Act agent across one or more tabs (navigation, clicks, form fills), optionally grounded in a recording. Returns `{ data, warnings, creditsUsed }`. Mirrors MCP `act_on_tab`.
`await rtrvr.extract({ userInput, tabIds?, schema?, recordingId?, recordingContext? })`	Structured extraction across tabs, optionally grounded in a recording. Returns `{ data, jsonData, warnings, creditsUsed }`. Mirrors MCP `extract_from_tab`.
`await rtrvr.processText({ textInputs, taskInstruction, schema? })`	Summarize or transform text inputs via the LLM. Returns `{ data?, text?, warnings, creditsUsed }`. Especially useful for parsing structured JSON out of unstructured strings — pass any text blob plus a `schema` and the helper returns typed `data` matching it.

javascript

// Compose planner-backed sub-agents with deterministic helpers.
const { data: leads } = await rtrvr.extract({
  userInput: "Pull each visible lead's name, email, and company",
  schema: {
    type: "array",
    items: {
      type: "object",
      properties: {
        name: { type: "string" },
        email: { type: "string" },
        company: { type: "string" },
      },
    },
  },
});

// processText shines for string -> JSON: pass raw text + a schema, get typed data.
const rawEmailBody = await rtrvr.callTool("fetchInboundEmail", { id: emailId });
const { data: parsed } = await rtrvr.processText({
  textInputs: [rawEmailBody.body],
  taskInstruction: "Extract the sender intent, requested meeting time, and any cited deal names.",
  schema: {
    type: "object",
    properties: {
      intent: { type: "string" },
      requestedMeetingTime: { type: "string" },
      dealNames: { type: "array", items: { type: "string" } },
    },
    required: ["intent"],
  },
});

const { sheetId } = await rtrvr.createSheet({
  title: "Lead outreach",
  headers: ["name", "email", "company", "intent", "deals"],
});

for (const lead of leads) {
  await rtrvr.appendRow({
    sheetId,
    values: [lead.name, lead.email, lead.company, parsed.intent, (parsed.dealNames || []).join(", ")],
  });
}

return { sheetId, count: leads.length };

Tool composition

Helper	Returns / Effect
`await rtrvr.callTool(name, params)`	Call another custom tool or MCP server tool by name. Resolution: the runtime looks the tool up by name, validates `params` against its schema, and dispatches — MCP tools through the connected MCP client (e.g. HubSpot, Linear), user tools through the same sandbox/webpage runtime they use in chat. Returns the callee's raw result.
`await rtrvr.listTools()`	List every tool the current user has available to `callTool` — both custom tools and MCP server tools — each with `{ name, description, parameters, source: 'custom' \| 'mcp' \| 'predefined' }`.
`await rtrvr.invokeBuiltin(helper, args)`	Escape-hatch that invokes any builtin by name — equivalent to `rtrvr.<helper>(args)`.

javascript

// MCP + custom-tool composition in a single subroutine.
// Assumes the user has connected the HubSpot MCP server and authored a custom
// tool called `fetchInboundEmail`. Both surface as `rtrvr.callTool(name, params)`
// without any extra glue.

const email = await rtrvr.callTool("fetchInboundEmail", { id: emailId });

const { data: parsed } = await rtrvr.processText({
  textInputs: [email.body],
  taskInstruction: "Extract sender intent and any cited deal names.",
  schema: {
    type: "object",
    properties: {
      intent: { type: "string" },
      dealNames: { type: "array", items: { type: "string" } },
    },
    required: ["intent"],
  },
});

// Dispatched to the HubSpot MCP server by name — the runtime resolves it.
const contact = await rtrvr.callTool("hubspot.createContact", {
  email: email.from,
  firstName: email.fromName?.split(" ")[0],
  lifecycleStage: parsed.intent === "demo_request" ? "lead" : "subscriber",
});

return { contactId: contact.id, intent: parsed.intent, deals: parsed.dealNames };

javascript

// Capture the active tab's tree, write a row to a new sheet, and index in KB.
const { tree, title, url } = await rtrvr.getPageTree({});

const { sheetId, sheetTab } = await rtrvr.createSheet({
  title: "Page Snapshots",
  headers: ["url", "title", "capturedAt"],
});

await rtrvr.appendRow({
  sheetId,
  sheetTab,
  values: [url, title, new Date().toISOString()],
});

const stores = await rtrvr.listKB();
const store = stores[0] || await rtrvr.createKB({ displayName: "Page Snapshots" });
await rtrvr.addToKB({ storeId: store.storeId });

return { sheetId, treeLength: tree.length };

javascript

// Drive the page via named system tools — no DOM code needed.
await rtrvr.pageAction({
  tool: "goto_url",
  args: { url: "https://example.com/orders" },
});

await rtrvr.pageAction({
  tool: "wait_for_element",
  args: { text: "Order list" },
});

const { tree, elementLinkRecord } = await rtrvr.getPageTree({});
// Pick a link in the tree and follow it by element_id
await rtrvr.pageAction({
  tool: "click_element",
  args: { element_id: Object.keys(elementLinkRecord)[0] },
});

return { followed: true };

javascript

// Ask a knowledge base a question and fan the answer into a sheet.
const [store] = await rtrvr.listKB();
if (!store) return { error: "No knowledge base stores yet" };

const { response, citations } = await rtrvr.queryKB({
  storeId: store.storeId,
  query: "Summarize the latest onboarding changes in one paragraph",
});

const { sheetId } = await rtrvr.createSheet({
  title: "KB digest",
  headers: ["question", "answer", "citationCount"],
});

await rtrvr.appendRow({
  sheetId,
  values: ["Latest onboarding changes", response, (citations || []).length],
});

return { sheetId, answer: response };

Choosing DOM vs Network Tools

Prefer DOM Actions When...	Prefer Network Interaction When...
The site uses volatile internal APIs, rotating GraphQL IDs, or framework-specific hidden identifiers	You have a clear first-party endpoint with a stable request/response shape
You need to click, type, open menus, wait for dialogs, or work inside rich editors	The action is fundamentally an API call and does not depend on visible UI state
The only evidence you have is a recording of buttons, composers, and page transitions	You need structured JSON back and the site’s authenticated page context can safely make the request

For DOM tools, prefer semantic targets such as role, accessible name, placeholder, and visible text
Use staged waits after each meaningful action: open dialog → wait for composer → type → wait for send button
Avoid brittle CSS selectors and volatile class names in generated tools
For network tools, prefer rtrvr.request() / rtrvr.requestJson() over copying full captured browser headers
Never hardcode cookies, bearer tokens, CSRF tokens, or volatile query/operation IDs from a recording

Sheets Tool Mapping

In Sheets Workflows, the agent can map tool calls to run for every row — intelligently pulling arguments from specific columns. Just include instructions in your prompt:

text

"For each row, use the loadContact tool to upload the email in Column A and name in Column B to HubSpot"

Column A (Email)	Column B (Name)	Column C (Result)
user@example.com	Jane Doe	✅ Contact created (ID: 12345)
admin@test.org	John Smith	✅ Contact created (ID: 12346)

Platform Availability

Capability	Extension	Cloud	API
@toolname direct calls	✅	—	—
MCP server connections	✅	✅	✅
AI Tool Generator	✅	✅	—
Custom JavaScript tools	✅	✅	—
Sheets tool mapping	✅	✅	✅
Tools in replayed workflows	✅	✅	✅

Tool Calling

AI Subroutines

Direct Tool Calls

MCP Servers

AI Tool Generator

Create a Subroutine From a Recording

Custom JavaScript Tools

Two Execution Styles

Webpage URLs and Parameters

How Parameters Work

Code Examples

Webpage Helper Functions (`rtrvr`)

Agent Capabilities (`rtrvr.*` built-ins)

Page data & actions

Google Sheets

Knowledge Base (RAG)

Recordings & tool creation

Agent sub-routines

Tool composition

Choosing DOM vs Network Tools

Sheets Tool Mapping

Platform Availability

Ready to automate?

Tool Calling

AI Subroutines

Direct Tool Calls

MCP Servers

AI Tool Generator

Create a Subroutine From a Recording

Custom JavaScript Tools

Two Execution Styles

Webpage URLs and Parameters

How Parameters Work

Code Examples

Webpage Helper Functions (`rtrvr`)

Agent Capabilities (`rtrvr.*` built-ins)

Page data & actions

Google Sheets

Knowledge Base (RAG)

Recordings & tool creation

Agent sub-routines

Tool composition

Choosing DOM vs Network Tools

Sheets Tool Mapping

Platform Availability

Ready to automate?
